Rotating Trolling Motor Mount

PLEASE ALLOW APPROXIMATELY 1-3 WEEKS FOR YOUR ORDER TO SHIP.  CANCELED ORDERS WILL INCUR CREDIT CARD FEES.

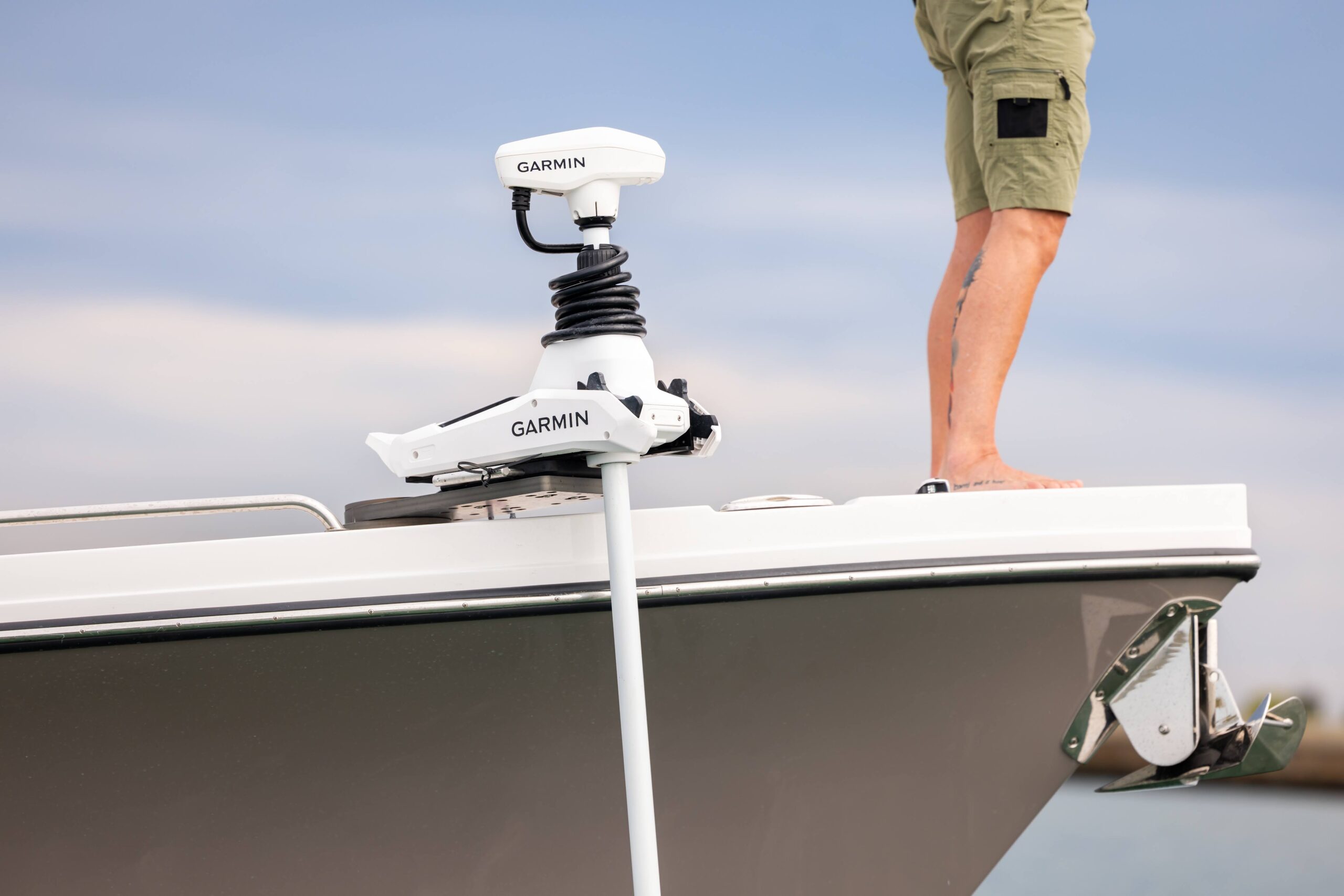

This Patent Pending mount is CNC Machined from 1.0″ thick 6061-T6 aluminium.  Additionally, it is Type III Hard Coat Anodized per MIL-A-8625 and comes with a lifetime warranty*.  This model rotates fully with 4 locking positions at 0, 30, 60 and 90 degrees to allow you to pivot or swivel the motor into position. Fully compatible with your Minn Kota, Garmin, Rhodan, Power-Pole, Motorguide or any other trolling motor with up to 120 inch shaft length. If you want to use your standard quick release mount such as RTA-17, MKA-21, RTA-54, RTA-62, MKA-64, RTA-55, MKA-56, or Garmin versions, we have those hole patterns included already so you are all set!  Quest series motors require QST-1 expander plate so please add that to your cart when ordering for those motors.  With a built in, simple to use detent mechanism, simply pull the large pin and rotate the motor so the shaft clears the rub rail.  Easy!   The SS-9.5R is the most robust rotating mounting system available today.

Why choose SS-9.5R over the SS-7.5R? (Short Video)

• You want to reduce the amount of pressure on your deck (clear deck space required for a 9.5″ diameter circle)

Why choose a rotating mount?

• You have limited space to attach a trolling motor
• You want the trolling motor to sit off to the side and sit along the gunwale
• You want a clear view of the bow without the trolling motor obstructing your field of view
• ALL SS-9.5R  mounts require 6 holes in your deck for proper attachment with first bolt within approximately 13 inches from edge of rub rail
• Uses all 3/8″ 316 Stainless hardware
• Optional Backing plate BKP-9.5R recommended if your have concerns about your deck

Product overview

• Designed to be used with the following mount systems or trolling motors with shaft lengths up to 108 inches
  • Minn Kota (Quest series included**): Instinct, Ulterra, Terrova, Powerdrive, Riptide Ulterra, Riptide Terrova, Riptide Powerdrive, Riptide SP/ST, PD/HC Pontoon and DH40
  • Garmin Force Kraken
  • Rhodan (all models)

  • Power-Pole Move PV (Offshore model supported!)

  • MotorGuide: Xi5 and Xi3
  • RTA-17, MKA-21, RTA-54, RTA-62, MKA-64, RTA-55**, MKA-56** Quick Release mounts
  • JM55007 (RTA-17 / MKA-21 clone) Quick Release mounts
  • Many other brands that share the same bolt patterns as above

Dimensions

• • Deck Plate footprint:  9.5″ Diameter
  • Center of rotation:  Approximately 3.5 inches behind rear of motor
  • Center of rotation to edge of trolling motor shaft:  Approximately 17.25 to 18.25 inches
  • Rotation Pin: 4.5″ Diameter
  • Detent Pin: 10mm Diameter (Over 6,000 lb shear rating)
  • Travel:  360 degrees, 4 detents at 0, 30, 60 and 90
  • Trolling motor mounted height:  ~1.50 inches from mounting surface (Boat deck typically)
  • Bottom of rotating plate to deck:  Approximately 0.675 inches
  • Rated motor weight (NOT thrust): 120 lbs
  • Rated shaft length:  UP TO 120 inches
  • Installation Instructions (Preliminary!)
  • Warranty:  Lifetime*

*Please see Warranty page for complete details of coverage

** Requires additional QST-1 adapter
